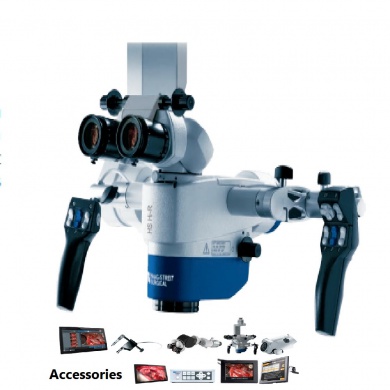

OUR HIGHLIGHTS: The HAAG-STREIT SURGICAL operating system HS 5-1000 consists of the SensoServo-driven microscope HS Hi-R 1000 and the extremly steady floor stand FS 5-33. For perfect vision, the optical properties of this microscope comply with the highest standards. The apochromatic optics provides perfect color fidelity, strong contrast, and high resolution. Due to the stereo base of 25 mm, an excellent depth perception is achieved. The floor stand FS 5-33 integrates latest technology with innovative damping for lowest vibration. Even when fully equipped microscopes are mounted and the arm is stretched to its full length of 1870 mm it stays stable as a rock! Servo locks and state-of-the-art castors allow effortless maneuverability. For best cleaning and disinfection all cables and accessories are covered and build into the tower. This houses also the touch screen C.TAB that supports intuitive operation and setting of the whole system. The two independent powerful 300 W xenon light sources allow best visibility, even in deep cavities. To keep the brightness constant when changing the magnification, the illumination zoom bundles the light to the size of the visual field. Additionally, the light spot can be reduced via diaphragms.

SensoServo DRIVE The SensoServo system of the operating microscope HS Hi-R 1000 uses ‘fly-by-wire‘ technology to move the microscope in all directions with utmost precision and requiring minimal force. This is achieved via the SensoGrips that are activated as soon as the brake release buttons are pressed. They detect the pressure and control the motor movement in the microscope‘s joints accordingly. Individual movement characteristics ranging from enhanced friction to feather-light can be chosen. The balancing remains permanently stable even when changing the positioning of the microscope or e.g. shifting the stereoscopic observer scope from left to right. HANDLING In addition to the incorporated sensors, the hand switches allow control of focus, zoom, and light. Via a multifunction pad on the right SensoGrip, the microscope can be positioned without opening the brakes. Two programmable buttons can be individually set to control various functions. FOCUSING The variable focus assembly permits working distances from 224 mm to 510 mm without lens exchange. Optionally an alternative focus assembly is available that allows focusing at working distances of 200 mm to 450 mm. The integrated double iris diaphragm can be used to maximize the depth of field.

Accessories
To meet individual requirements, we offer a wide range of
accessories and equipment options to choose from.

1-C.DUO

The C.DUO offers face-to-face observation for two surgeons, lateral ports, and a separate camera connection for c-mount cameras. Tilted microscope positioning can be compensated for improved ergonomics through the rotation of the eyepiece heads.

2-C.INJECT 1000

In addition to the C.DUO functions, our C.INJECT 1000 features high resolution image injection as a full image or overlay

3-LATERAL STEREOSCOPIC OBSERVER SCOPE

For lateral observation stereoscopic observer scopes are available. They are equipped with an inclinable or fixed eyepiece head and allow perfect positioning via a 3-axis movement. Image rotation is integrated for optimal viewing by the assistant.

4-MOUTH SWITCH

Attached to the 200° inclinable eyepiece head, the mouth switch allows hands-free movement of the microscope in three axes.

5-M.FOCUS

Benefit from best focusing results with an active focus area that is adjustable in size and position

6-HS MIOS MIOS

stands for Microscope Imaging and Operation System. Its prime functions are recording of operation scenes, capturing and recording of snapshots, together with proper identification of patients’ and hospital data. Images and video streams can be stored on DVD-R/-RW, HDD, USB flash drive, and external USB hard disk drive or transmitted to the hospital PACS via DICOM.

7-M.DIS

The M.DIS (Microscope Display) is a touch screen mounted close to the oculars in the surgeon’s direct view. It can visualize up to 3 different video inputs that are connected to the screen via M.BOX S. To switch between the different video inputs a simple tap of your finger is all that is needed. When connected to the HS MIOS the M.DIS acts as a remote control of the recording system. It can even be operated through the drape and makes visualization possible right in front of the surgeon. This is especially beneficial for viewing ICG fluorescence.

8-C.MOR HD C.MOR HD is a full HD color video camera designed for the HAAG-STREIT SURGICAL microscope. Its ultra-compact camera head houses a 1/3‘‘ CMOS sensor that meets very high standards. With a resolution of 900 TV lines and an S/N ratio of 50 dB images are crisp and sharp. Different user settings allow individual adjustments.

9-C.MON HD

With its flat design and the size of 21.5“ the brilliant HD monitor C.MON HD can easily be attached to the microscope‘s floor stand. Its touch function can be operated even with medical gloves. Due to the planar screen and glass surface it can be disinfected easily. For the safety of the system C.MON HD is fully approved for medical use.
